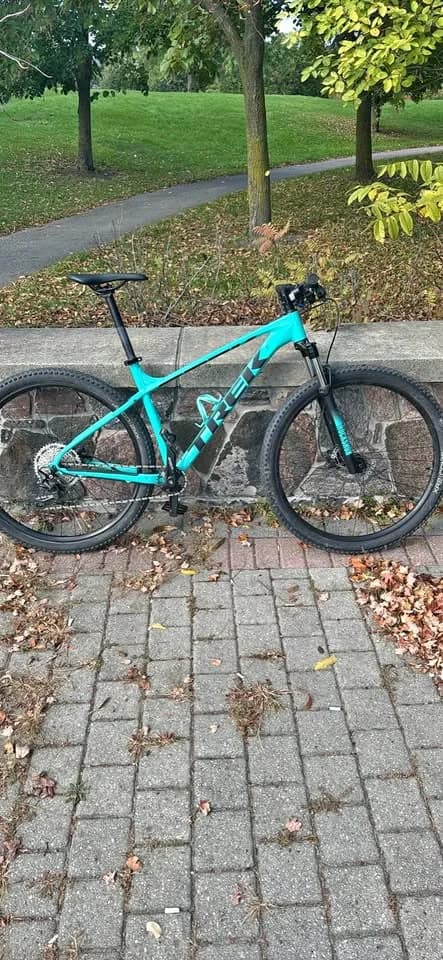

Trek Marlin 7 size Large

Frame
Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
Fork
Size: XS
RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 80mm travel
Size: XS
RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5" wheel, 100mm QR, 80mm travel
Size: S
RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: S
RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL
RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel
Size: M , ML , L , XL , XXL
RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel

Wheels
Hub front
Formula DC-20, alloy, 6-bolt, 100x5mm
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Skewer rear
152x5mm QR
Rim
Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
Spokes
14g stainless steel, black
Tire
Size: XS , S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"
Size: XS , S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20''
Size: M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
Max tire size
Frame: 29x2.20" (XS & S: 27.5x2.40"), Fork: See manufacturer

Drivetrain
Shifter
Shimano Deore M4100, 10 speed
Rear derailleur
Shimano Deore M5120, long cage
Crank
Size: XS , S , M
FSA Alpha Drive, 28T steel ring, 55mm chainline, 170mm length
Size: ML , L , XL , XXL
FSA Alpha Drive, 28T steel ring, 55mm chainline, 175mm length
Bottom bracket
FSA, 73 mm, threaded cartridge, 122.5 mm spindle
Cassette
Shimano Deore M4100, 11-46, 10 speed
Chain
KMC X10, 10 speed
Pedal
VP-536 nylon platform
Max chainring size
1x: See FAQ, 2x: 36T, 3x: 42T

Components
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost
Size: XS , S , M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
Handlebar
Size: XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S , M , ML , L , XL , XXL
Bontrager alloy, 31.8mm, 5mm rise, 720mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Size: XS
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: S
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Size: M
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: XL , XXL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 90mm length
Headset
Semi-integrated, 1-1/8"
Brake
Shimano MT200 hydraulic disc
*Brake rotor
Size: XS , S , M , ML , L , XL , XXL
Shimano RT26, 6-bolt, 160mm
Size: L , XL , XXL
Shimano RT26, 6-bolt, 180mm
Brake Set
Shimano MT200 hydraulic disc

Weight
Weight
M - 13.47 kg / 29.7 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
